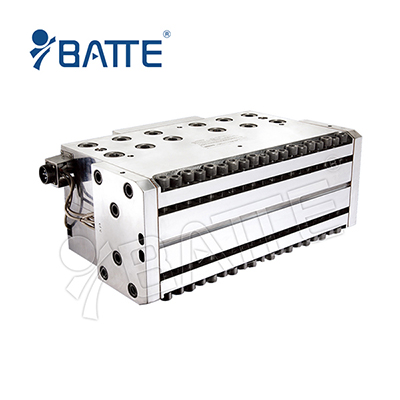

XPS Foam Sheet Die
Application field
applicance,medical,food,car,electronic
Technical data
|
Item |
Specification |
|
Die steel |
P20/5CrNiMo |
|
Material |
XPS |
|
Width of the die |
600mm/900mm/1200mm |
|
Thickness of the product |
20-120mm adjustable |
|
Way of flow passage |
streamlined |
|
Voltage |
220V/50hz |
|
Heating type |
heating inside |
|
Heater element |
stainless steel heating rod |
|
Mode of connection |
closed cycled connection |
|
Fastening piece |
12.9 high strength |
|
Precision of polishing |
Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm) |
|
Galvanization |
the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm. |
|
Installation |
according costumer’s request |
|
Way of charging |
central ring charging way |
|
