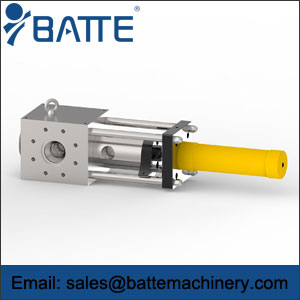

Single column screen changer

Single column screen changer extrusion is used to filter out the foreign particles and impurities when the plastic material flow is filtered. Melt extrusion screen changer is used for extrusion system to improve the quality of products.



Single piston screen changer specifications:

Type	Output Kg/h	Size (mm)				Screen size		Heating tube
		L1	L2	L3	L4	Ф(mm)	cm2	Quantity	V	KW
ZB-SP-R-100	50~150	100	700	180	180	Ф80	50	4	230/400	0.5/0.8
ZB-SP-R-120	100~260	110	730	210	210	Ф100	78	4	230/400	0.6/1.0
ZB-SP-R-145	200~380	125	800	240	240	Ф125	123	4	230/400	0.7/1.2
ZB-SP-R-170	290~600	135	860	260	260	Ф150	177	4	230/400	1.0/1.6
ZB-SP-R-195	400~820	150	960	300	300	Ф175	240	4	230/400	1.6/2.0
ZB-SP-R-220	600~1300	160	1150	330	330	Ф200	314	8	230/400	1.0/1.4
ZB-SP-R-250	800~2000	180	1250	380	380	Ф230	415	8	230/400	1.6/2.0

Type	Output Kg/h	Size (mm)				Screen size		Heating tube
		L1	L2	L3	L4	(mm)L×W	cm2	Quantity	V	KW
ZB-SP-E-120	180~450	130	870	210	210	100×145	124	4	230/400	0.8/1.2
ZB-SP-E-145	280~600	145	900	240	240	125×170	179	4	230/400	0.9/1.5
ZB-SP-E-170	600~1300	185	1100	260	260	150×230	296	4	230/400	1.6/2.2
ZB-SP-E-195	790~2500	200	1200	300	300	175×270	406	4	230/400	2.3/3.0
ZB-SP-E-220	990~3500	215	1300	330	330	200×300	514	8	230/400	2.0/2.5
ZB-SP-E-270	1570~4600	220	1350	380	380	230×310	600	8	230/400	2.0/2.5
ZB-SP-E-270	1950~6000	240	1450	410	410	250×345	737	8	230/400	2.5/3.0

Single column double work station screen changer function, advantages, and features:
Filtering net supported by a porous alloy plate, perforated plate installed on the plate or column vector, while the carrier is moved to a system of job position and offline in the non working position switch between.
Adopts high-performance steel and special processing, heating processing technology, it specially designs for high pressure technological.
High wear proof, high withstand voltage, high precision integrated design.
With highly precise design, abrasive resistant, high pressure performance
Nonstop screen changing, leakfree design. Automatic exhaust design.
At the pressure of 40-50Mpa, high temperature of 300-400℃, it won’t affect other usability.


Melt extrusion screen changer Application:

1. from the synthetic reaction device of the plastic resin to the extrusion granulation production line of the bulk particles.

2. ceramic extrusion line.

3. The polymers (plastics and rubber molding production lines, including blown film, cast film, sheet, pipe, profile, plastic recycling, granulation, drawing, water cut grain, color masterbatch granulation and extrusion coating production line.

4. suitable for all kinds of granulating machine, extrusion machine, film blowing machine, drawing machine, sheet extrusion machine, extrusion machine.
5. It suits for high pressure product manufacturer, especially for blown film, cast film, drawbench, pelleting etc. almost all of the thermoplastic plastics.
